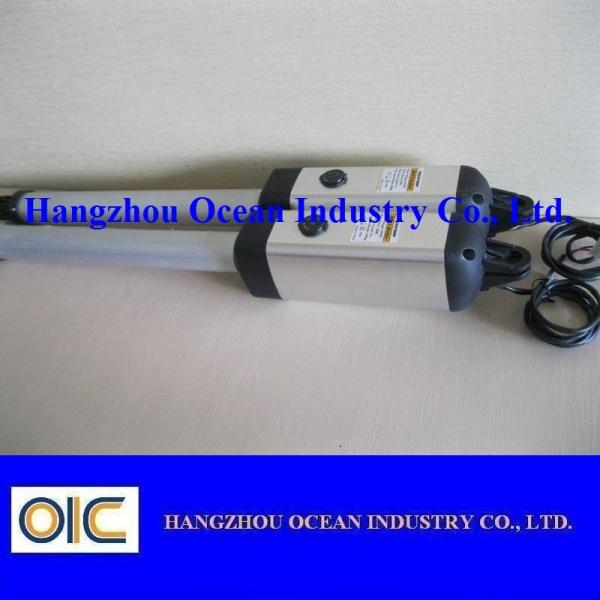

    Soft Start Swing Gate Operator

    Ask Lasest Price
    Brand Name : MW
    Certification : CE
    Price : USD80-120/SET
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000PCS/DAY
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Soft Start Swing Gate Operator


    Swing Gate Operator Door Opener Gate Opener Door Motor Gate Motor


    High Quality Swing Gate Operator Door Opener Gate Opener Door Motor Gate Motor

    Functions:

    • Soft start and soft stop
    • Emergency release key in case of power failure
    • Dual/Single gate running mode
    • Adjustable opening/closing interval between master and slave gate
    • Stop/Reverse in case of obstruction during gate opening/closing.
    • Built in adjustable auto-close (0-99 seconds)
    • Built in max Motor Running Time (MRT) adjustable for multiple safety protection (1-50 seconds)
    • Digital display indicates the running situation and setting menu
    • Reliable electromagnetism limit for easy adjustment
    • Can be equipped with a wide range of accessories

    Features:

    • Thermal protection built in motor.
    • Drive setup is made up of turbine and down, working placidly.
    • Assemble easily. In case of power failure, the gate can be opened and closed manually after release clutch.
    OICSV-1
    Supply Voltage(V)AC230/120V
    Motor Power(W)90W
    Maximum Weight Of Gate300kg
    Electric Current1.8A
    Gate Speed12M/Minute
    Maximum Width Of Gate3M
    Cycles/Hour18
    Operating Environment Temperature-45℃~65℃
    Protection LevelIP44
    ArmSingle/Double(Mention Left or Right)
    OICSV-2
    Supply Voltage(V)AC230 50Hz/120V 60Hz
    Motor Power(W)150W
    Stroke500mm
    Maximum Width Of Gate5M
    Maximum Weight Of Gate1000kg
    Motor Rotation Speed(Rated)1400r/min
    Gate Speed12M/Minute
    Limit SwitchMechanical Limit Switch
    Noise≤56dB
    Operating Environment Temperature-45℃~65℃
    Protection LevelIP44
    ArmSingle/Double(Mention Left or Right)
