Phosphated Cast Iron Taper Lock Bushes With Bore

    Buy cheap Phosphated Cast Iron Taper Lock Bushes With Bore from wholesalers

    Buy cheap Phosphated Cast Iron Taper Lock Bushes With Bore from wholesalers
    • Buy cheap Phosphated Cast Iron Taper Lock Bushes With Bore from wholesalers
    • Buy cheap Phosphated Cast Iron Taper Lock Bushes With Bore from wholesalers
    • Buy cheap Phosphated Cast Iron Taper Lock Bushes With Bore from wholesalers
    • Buy cheap Phosphated Cast Iron Taper Lock Bushes With Bore from wholesalers

    Phosphated Cast Iron Taper Lock Bushes With Bore

    Ask Lasest Price
    Brand Name : MW
    Model Number : AK BKSPA SPB SPC SPZ
    Price : USD10-50/PCS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 30000PCS/MONTH
    Delivery Time : 20-40DAYS
    • Product Details
    • Company Profile

    Phosphated Cast Iron Taper Lock Bushes With Bore

    MW Customized Phosphated Cast Iron V Belt Pulley Taper

    Lock Bushes With Bore

    Taper bush pulley and solid hub pulley, various speed pulley, flat belts pulley, adjustable speed v belt pulley, material is gray cast iron, they have good hardness and strength.
    There are two standards, one is European standard, and another one is American standard.
    For European standard, after precise machining, and then the pulley will be phosphated, and then it will be anti rusted.
    For American standard pulley, they are suitable for 3L, 4L, 5L, A, B, C, 3V, 5V, 8V belt, after precise machining and power painting, they will get smooth and beautiful surface and good anticorrosive capacity
    Flat Belt pulley for taper bush type range: 63~630
    Sheave for taper bush
    Sheave for "QD" taper bush
    Sheaves for "Split" taper bush
    Sheaves for 3L, 4L, 5L, A, B, C, Z belt and so on
    We are professional supplier for pulley and taper lock bushing, and we can produce as per your drawing or sample also.
    Specifications:
    1) European standard:
    a) V-belt pulleys for taper bushings: SPZ, SPA, SPB, SPC; up to 10 grooves
    b) Adjustable speed V-belt pulleys and variable speed pulleys
    c) Flat belt pulleys and conveyor belt pulleys
    2) American standard:
    a) Sheaves for taper bushings: 3V, 5V, 8V
    b) Sheaves for QD bushings: 3V, 5V, 8V
    c) Sheaves for split taper bushings: 3V, 5V, 8V
    d) Sheaves for 3L, 4L or A, and 5L or B belts: AK, AKH, 2AK, 2AKH, BK, BKH,2BK, 2BKH, 3BK
    e) Adjustable sheaves: poly V-pulley, multi-pitch H, L, J, K and M
    3) Bore: pilot bore, finished bore, taper bore, bore for QD bushing
    4) Surface finish: paint, phosphating, zinc plated
    5) Material: cast iron, ductile iron, nylon, aluminum
    6) Made according to drawings and/or samples, OEM inquiries welcomed

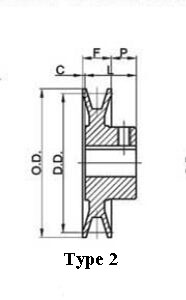

    Single Groove Sheaves for “4L” or “A” Belt and “5L” or “B” Belts
    Phosphated Cast Iron Taper Lock Bushes With BorePhosphated Cast Iron Taper Lock Bushes With BorePhosphated Cast Iron Taper Lock Bushes With BorePhosphated Cast Iron Taper Lock Bushes With Bore
    PART NO.
    Outside
    Datum "A"
    Datum "B"
    Type
    F
    L
    P
    C
    Wt. Lbs.
    BK24
    2.40"
    1.80"
    2.20"
    1
    13/16"
    1 1/16"
    13/32"
    5/32"
    0.4
    BK25
    2.5
    1.9
    2.3
    1
    13/16
    1 1/16
    13/32
    5/32
    0.5
    BK26
    2.6
    2
    2.4
    1
    13/16
    1 1/16
    13/32
    5/32
    0.6
    BK27
    2.7
    2.1
    2.5
    2
    13/16
    1 1/16
    13/32
    5/32
    0.6
    BK28
    2.95
    2.2
    2.6
    2
    13/16
    1 1/16
    13/32
    5/32
    0.8
    BK30
    3.15
    2.4
    2.8
    2
    13/16
    1 1/16
    13/32
    5/32
    0.8
    BK32
    3.35
    2.6
    3
    2
    13/16
    1 1/16
    13/32
    5/32
    0.8
    BK34
    3.55
    2.8
    3.2
    2
    7/8
    1 5/32
    13/32
    1/8
    1.3
    BK36
    3.75
    3
    3.4
    2
    7/8
    1 5/32
    13/32
    1/8
    1.5
    BK40
    3.95
    3.2
    3.6
    2
    7/8
    1 5/32
    13/32
    1/8
    1.5
    BK45
    4.25
    3.5
    3.9
    2
    7/8
    1 5/32
    13/32
    1/8
    1.8
    BK47
    4.45
    3.7
    4.1
    2
    7/8
    1 5/32
    13/32
    1/8
    1.9
    BK50
    4.75
    4
    4.4
    3
    7/8
    1 5/32
    13/32
    1/8
    2
    BK52
    4.95
    4.2
    4.6
    3
    7/8
    1 5/32
    13/32
    1/8
    2
    BK55
    5.25
    4.5
    4.9
    3
    7/8
    1 5/32
    13/32
    1/8
    2.2
    BK57
    5.45
    4.7
    5.1
    3
    7/8
    1 5/32
    13/32
    1/8
    2.3
    BK60
    5.75
    5
    5.4
    3
    7/8
    1 5/32
    13/32
    1/8
    2.3
    BK62
    5.95
    5.2
    5.6
    3
    7/8
    1 5/32
    13/32
    1/8
    2.4
    BK65
    6.25
    5.5
    5.9
    3
    7/8
    1 5/32
    13/32
    1/8
    2.7
    BK67
    6.45
    5.7
    6.1
    3
    7/8
    1 5/32
    13/32
    1/8
    2.8
    BK70
    6.75
    6
    6.4
    3
    7/8
    1 15/32
    21/32
    1/16
    3.3
    BK72
    6.95
    6.2
    6.6
    3
    7/8
    1 15/32
    21/32
    1/16
    3.9
    BK75
    7.25
    6.5
    6.9
    3
    7/8
    1 15/32
    21/32
    1/16
    3.9
    BK77
    7.45
    6.7
    7.1
    3
    7/8
    1 15/32
    21/32
    1/16
    4.1
    BK80
    7.75
    7
    7.4
    3
    7/8
    1 15/32
    21/32
    1/16
    4.4
    BK85
    8.25
    7.5
    7.9
    3
    7/8
    1 15/32
    21/32
    1/16
    5
    BK90
    8.75
    8
    8.4
    3
    7/8
    1 15/32
    21/32
    1/16
    5
    BK95
    9.25
    8.5
    8.9
    3
    7/8
    1 15/32
    21/32
    1/16
    5.4
    BK100
    9.75
    9
    9.4
    3
    7/8
    1 15/32
    21/32
    1/16
    5.6
    BK105
    10.25
    9.5
    9.9
    3
    7/8
    1 15/32
    21/32
    1/16
    5.8
    BK110
    10.75
    10
    10.4
    3
    7/8
    1 15/32
    21/32
    1/16
    6.4
    BK115
    11.25
    10.5
    10.9
    3
    7/8
    1 15/32
    21/32
    1/16
    6.9
    BK120
    11.75
    11
    11.4
    3
    7/8
    1 15/32
    21/32
    1/16
    7.4
    BK130
    12.75
    12
    12.4
    3
    7/8
    1 15/32
    21/32
    1/16
    8.4
    BK140
    13.75
    13
    13.4
    3
    7/8
    1 15/32
    21/32
    1/16
    9.4
    BK160
    15.75
    15
    15.4
    3
    7/8
    1 15/32
    21/32
    1/16
    11.4
    BK190
    18.75
    18
    18.4
    3
    7/8
    1 15/32
    21/32
    1/16
    13.4

    Single Groove Sheaves for “4L” or “A” Belt

    Phosphated Cast Iron Taper Lock Bushes With BorePhosphated Cast Iron Taper Lock Bushes With BorePhosphated Cast Iron Taper Lock Bushes With BorePhosphated Cast Iron Taper Lock Bushes With Bore

    PART NO.
    Outside
    Datum"A"
    Pitch"3L"
    Type
    F
    L
    P
    C
    Wt. Lbs
    AK17
    1.75"
    1.50"
    1.16"
    1
    21/32"
    15/16"
    7/16"
    5/32"
    0.2
    AK20
    2
    1.8
    1.46
    1
    21/32"
    15/16"
    7/16"
    5/32"
    0.3
    AK21
    2.1
    1.9
    1.56
    1
    21/32"
    15/16"
    7/16"
    5/32"
    0.4
    AK22
    2.2
    2
    1.66
    1
    21/32"
    15/16"
    7/16"
    5/32"
    0.5
    AK23
    2.3
    2.1
    1.76
    1
    21/32"
    15/16"
    7/16"
    5/32"
    0.5
    AK25
    2.5
    2.3
    1.96
    2
    21/32"
    15/16"
    7/16"
    5/32"
    0.5
    AK26
    2.6
    2.4
    2.06
    2
    21/32"
    15/16"
    7/16"
    5/32"
    0.5
    AK27
    2.7
    2.5
    2.16
    2
    21/32"
    15/16"
    7/16"
    5/32"
    0.6
    AK28
    2.8
    2.6
    2.26
    2
    21/32"
    15/16"
    7/16"
    5/32"
    0.7
    AK30
    3.05
    2.8
    2.46
    2
    21/32"
    15/16"
    7/16"
    5/32"
    0.7
    AK32
    3.25
    3
    2.66
    2
    21/32"
    15/16"
    7/16"
    5/32"
    0.7
    AK34
    3.45
    3.2
    2.86
    2
    21/32"
    15/16"
    7/16"
    5/32"
    0.9
    AK39
    3.75
    3.5
    3.16
    2
    		 3/4"
    1 5/32
    15/32
    1/16"
    1.4
    AK41
    3.95
    3.7
    3.36
    2
    3/4"
    1 5/32
    15/32
    1/16"
    1.5
    AK44
    4.25
    4
    3.66
    3
    3/4"
    1 5/32
    15/32
    1/16"
    1.5
    AK46
    4.45
    4.2
    3.86
    3
    3/4"
    1 5/32
    15/32
    1/16"
    1.5
    AK49
    4.75
    4.5
    4.16
    3
    3/4"
    1 5/32
    15/32
    1/16"
    1.7
    AK51
    4.95
    4.7
    4.36
    3
    3/4"
    1 5/32
    15/32
    1/16"
    1.7
    AK54
    5.25
    5
    4.66
    3
    3/4"
    1 5/32
    15/32
    1/16"
    1.8
    AK56
    5.45
    5.2
    4.86
    3
    3/4"
    1 5/32
    15/32
    1/16"
    1.9
    AK59
    5.75
    5.5
    5.16
    3
    3/4"
    1 5/32
    15/32
    1/16"
    2
    AK61
    5.95
    5.7
    5.36
    3
    3/4"
    1 5/32
    15/32
    1/16"
    2.1
    AK64
    6.25
    6
    5.66
    3
    3/4"
    1 5/32
    15/32
    1/16"
    2.2
    AK66
    6.45
    6.2
    5.86
    3

    3/4"
    1 5/32
    15/32
    1/16"
    2.3
    AK69
    6.75
    6.5
    6.16
    3
    3/4"
    1 15/32
    23/32
    0
    3.5
    AK71
    6.95
    6.7
    6.36
    3
    3/4"
    1 15/32
    23/32
    0
    3.8
    AK74
    7.25
    7
    6.66
    3
    3/4"
    1 15/32
    23/32
    0
    3.4
    AK79
    7.75
    7.5
    7.16
    3
    3/4"
    1 15/32
    23/32
    0
    4
    AK84
    8.25
    8
    7.66
    3
    3/4"
    1 15/32
    23/32
    0
    3.8
    AK89
    8.75
    8.5
    8.16
    3
    3/4"
    1 15/32
    23/32
    0
    4.3
    AK94
    9.25
    9
    8.66
    3
    3/4"
    1 15/32
    23/32
    0
    4.5
    AK99
    9.75
    9.5
    9.16
    3
    3/4"
    1 15/32
    23/32
    0
    5.3
    AK104
    10.3
    10
    9.66
    3
    3/4"
    1 15/32
    23/32
    0
    5.1
    AK109
    10.8
    10.5
    10.2
    3
    3/4"
    1 15/32
    23/32
    0
    5.8
    AK114
    11.3
    11
    10.7
    3
    3/4"
    1 15/32
    23/32
    0
    5.6
    AK124
    12.3
    12
    11.7
    3
    3/4"
    1 15/32
    23/32
    0
    6.5
    AK134
    13.3
    13
    12.7
    3
    3/4"
    1 15/32
    23/32
    0
    7.5
    AK144
    14.3
    14
    13.7
    3
    3/4"
    1 15/32
    23/32
    0
    8.5
    AK154
    15.3
    15
    14.7
    3
    3/4"
    1 15/32
    23/32
    0
    9.8
    AK184
    18.3
    18
    17.7
    3
    3/4"
    1 15/32
    23/32
    0
    12.1

    Phosphated Cast Iron Taper Lock Bushes With Bore

    Hangzhou Ocean Industry Co., Ltd. is a specialized supplier of a full range of chains, sprockets, gears, gear racks, v belt pulley, timing pulley, V-belts, couplings, machined parts and so on.

    Due to our sincerity in offering best service to our clients, understanding of your needs and overriding sense of responsibility toward filling ordering requirements, we have obtained the trust of buyers worldwide. Having accumulated precious experience in cooperating with foreign customers, our products are selling well in the American, European, South American and Asian markets. Our products are manufactured by modern computerized machinery and equipment. Meanwhile, our products are manufactured according to high quality standards, and complying with the international advanced standard criteria.

    With many years' experience in this line, we will be trusted by our advantages in competitive price, one-time delivery, prompt response, on-hand engineering support and good after-sales services.

    Additionally, all our production procedures are in compliance with ISO9001 standards. We also can design and make non-standard products to meet customers' special requirements. Quality and credit are the bases that make a corporation alive. We will provide best services and high quality products with all sincerity. If you need any information or samples, please contact us and you will have our soon reply.

    FAQ:
    Q1: Are you trading company or manufacturer ?
    A: We are factory.

    Q2: How long is your delivery time and shipment?
    1.Sample Lead-times: generally 10 workdays.
    2.Production Lead-times: 20-40 workdays after getting your deposit.
    Q3. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery.
    Q4: What is your advantages?
    1. Manufacturer,the most competitive price and good quality.
    2. Perfect technical engineers give you the best support.
    3. OEM is available.
    4. Rich stock and quick delivery.
    Q5. If you can’t find the product on our website,what do you next?
    Please send us inquiry with product pictures and drawings by email or other ways and we'll check.
