Agricultural Machine Worm Transmission Gearbox Reducer

    Buy cheap Agricultural Machine Worm Transmission Gearbox Reducer from wholesalers

    Buy cheap Agricultural Machine Worm Transmission Gearbox Reducer from wholesalers
    • Buy cheap Agricultural Machine Worm Transmission Gearbox Reducer from wholesalers
    • Buy cheap Agricultural Machine Worm Transmission Gearbox Reducer from wholesalers
    • Buy cheap Agricultural Machine Worm Transmission Gearbox Reducer from wholesalers

    Agricultural Machine Worm Transmission Gearbox Reducer

    Ask Lasest Price
    Brand Name : MW
    Model Number : OTHER
    Price : USD50-100/PCS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 100000PCS/MONTH
    Delivery Time : 20-40DAYS
    • Product Details
    • Company Profile

    Agricultural Machine Worm Transmission Gearbox Reducer

    Wholesale Manufacture HC138, 300, HC400, HC600 HC1000 Marine Gearbox For Work Boat
    Our Gearbox has many items for your choosing and we can produce as per your drawing or sample to meet your special request
    1. Large output torque
    2. Safe, reliable, economical and durable
    3. Stable transmission, quiet operation
    4. High carrying ability
    5. High modularization design, may equip with various outer power input conveniently. Same machine type may equip with various power motor. It is easy to realize the combination and junction between every machine type
    6. Transmission ratio: Fine division, wide scope. The combined machine type may form very large transmission ratio, i. E. Output very low rotary speed.
    7. Form of installation: The position to be installed is not limited.
    8. High strength, compact the box body of high strength cast iron, gear and gear shaft adapts the gas carbonization, quenching and fine grinding process, therefore the bearing capacity of unit volume is high.
    9. Long life: Under the condition of correct type chosen(including choosing suitable operation parament ) normal operation and maintenance, the life if main parts speed reducer(except wearing parts)should not be less than 20000 hours. The wearing parts include lubricating oil, oil seal and bearing.
    10. Low noise: Because main parts of speed reducer are processed, and tested critically, therefore the noise of speed reducer is low.
    11. Our gear box have reached the advance international level, can replace the same kind of products imported.

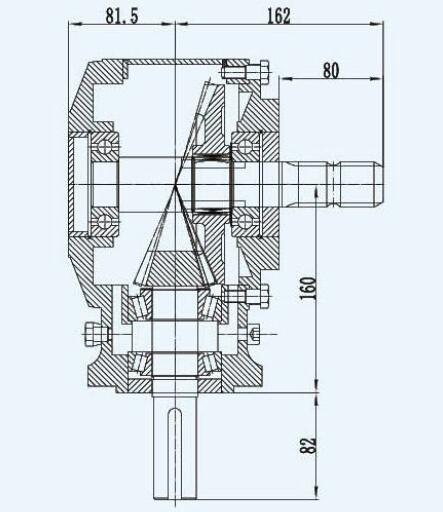

    Agricultural Machine Worm Transmission Gearbox ReducerAgricultural Machine Worm Transmission Gearbox Reducer

    Item No.
    9.311
    Ratio
    1:3
    Teeth
    12/36
    Module
    4.35
    HP
    50
    Rated Input
    540rpm
    Input/Output Description
    Hexagon Spline
    Optic Axis
    Net Weight
    21kg

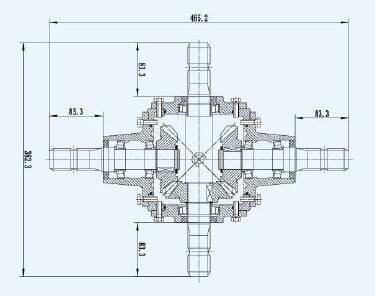

    Agricultural Machine Worm Transmission Gearbox ReducerAgricultural Machine Worm Transmission Gearbox Reducer

    Item No.
    AG135
    Ratio
    1:1
    Teeth
    20/20
    Mould
    6.0
    Rated Input
    640rpm
    Input/Output Description
    Hexagon Spline(1 3/8 Z6)
    Hexagon Spline(1 3/8 Z6)
    Net Weight
    17kg

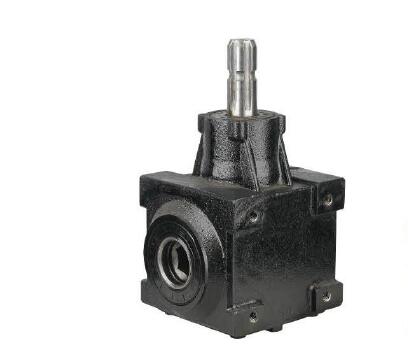

    Agricultural Machine Worm Transmission Gearbox ReducerAgricultural Machine Worm Transmission Gearbox Reducer

    Item No.
    CX-281
    Ratio
    1:1
    Teeth
    19/19
    Module
    4.5
    Rated Input
    540rpm
    Input/Output Description
    Hexagon Spline (1 3/8 Z6)
    Optic Axis
    Net Weight
    7.5kg

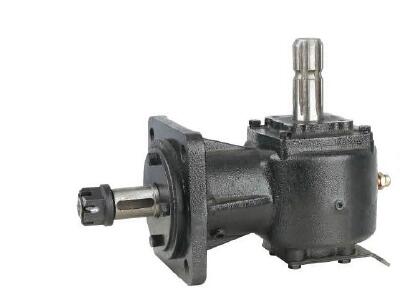

    Agricultural Machine Worm Transmission Gearbox ReducerAgricultural Machine Worm Transmission Gearbox Reducer

    Item No.
    HC-012-11
    Ratio
    1:2
    Teeth
    10/20
    Module
    3.0
    HP
    10
    Rated Input
    540rpm
    Input/Output Description
    Optic Axis
    Optic Axis
    Net Weight
    3.8kg

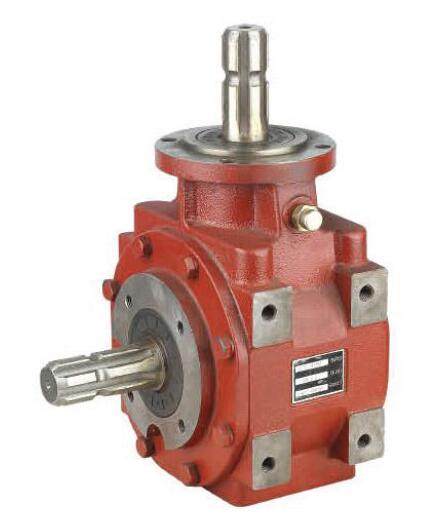

    Agricultural Machine Worm Transmission Gearbox ReducerAgricultural Machine Worm Transmission Gearbox Reducer

    Item No.
    HC-30
    Ratio
    1:2.83
    Teeth
    12/34
    Module
    3.5
    HP
    30
    Rated Input
    540rpm
    Input/Output Description
    Hexagon Spline ( 1 3/8 Z6 )
    Optic Axis
    Net Weight
    17kg

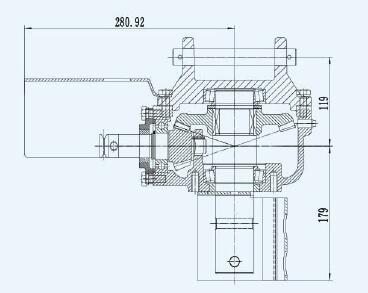

    Agricultural Machine Worm Transmission Gearbox ReducerAgricultural Machine Worm Transmission Gearbox Reducer

    Item No.
    HC-205JC
    Ratio
    1:147
    Teeth
    15/20
    Module
    5.0
    Rated Input
    540rpm
    Input/Output Description
    Hexagon Spline ( 1 3/8 Z6 )
    Cone base aequilate spline shaft
    Net Weight
    16kg

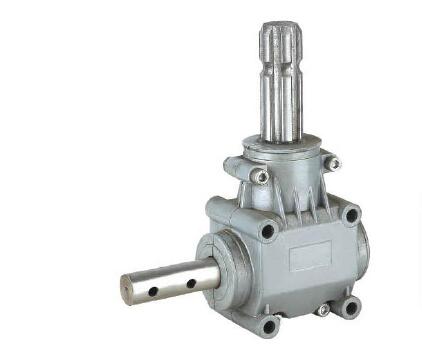

    Agricultural Machine Worm Transmission Gearbox ReducerAgricultural Machine Worm Transmission Gearbox Reducer

    Item No.
    HC-650
    Ratio
    2.92:1
    Teeth
    13/38
    Module
    4.25
    HP
    30
    Rated Input
    540rpm
    Input/Output Description
    Optic Axis
    Optic Axis
    Net Weight
    24.1kg

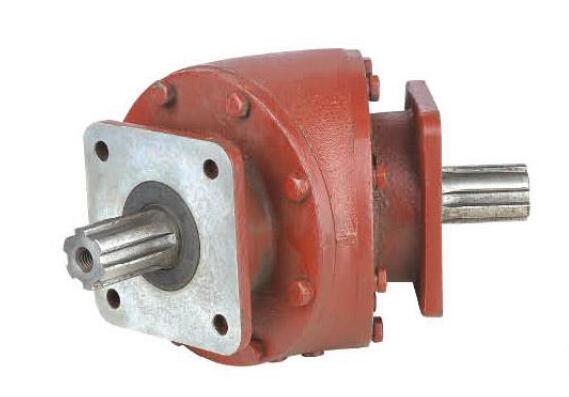

    Agricultural Machine Worm Transmission Gearbox ReducerAgricultural Machine Worm Transmission Gearbox Reducer

    Item No.
    HC-756
    Ratio
    1:1
    Teeth
    17/17
    Module
    6.35
    Rated Input
    540rpm
    Input/Output Description
    Hexagon Spline ( 1 3/8 Z6 )
    Hexagon Spline ( 1 3/8 Z6 )
    Net Weight
    25kg

    Agricultural Machine Worm Transmission Gearbox ReducerAgricultural Machine Worm Transmission Gearbox Reducer

    Item No.
    HC-0762-1
    HC-0762-2
    Ratio
    1.46:1
    1.92:1
    Teeth
    15/22
    12/23
    Module
    5.65
    5.5
    HP
    40
    40
    Rated Input
    540rpm
    540rpm
    Input/Output Description
    Hexagon Spline ( 1 3/8 Z6 )
    Inner Hexagon
    Net Weight
    20.5kg
    20.5kg

    Agricultural Machine Worm Transmission Gearbox ReducerAgricultural Machine Worm Transmission Gearbox Reducer

    Item No.
    HC-0958
    Ratio
    4.08:1
    Teeth
    12/49
    Module
    4.5
    HP
    50
    Rated Input
    540rpm
    Input/Output Description
    Hexagon Spline ( 1 3/8 Z6 )
    Optic Axis
    Net Weight
    58.5kg

    Agricultural Machine Worm Transmission Gearbox ReducerAgricultural Machine Worm Transmission Gearbox ReducerAgricultural Machine Worm Transmission Gearbox Reducer

    Item No.
    HC-0961T-1
    HC-0961T-2
    Ratio
    1:1.3
    1.3:1
    Teeth
    26/20
    20/26
    Module
    5.644
    5.644
    Rated Input
    540rpm
    540rpm
    Input/Output Description
    Hexagon Spline ( 1 3/8 Z6 )
    Hexagon Spline ( 1 3/8 Z6 )
    Net Weight
    57.5kg
    57.5kg

    Agricultural Machine Worm Transmission Gearbox ReducerAgricultural Machine Worm Transmission Gearbox Reducer

    Item No.
    HC-1144
    Ratio
    1:1.44
    Teeth
    23/16
    Module
    6.0
    Rated Input
    540rpm
    Input/Output Description
    21 Tooth Spline
    Cone base aequlate spline shaft
    Net Weight
    34kg

    Agricultural Machine Worm Transmission Gearbox ReducerAgricultural Machine Worm Transmission Gearbox Reducer

    Item No.
    HC-7193
    Ratio
    1:1.21
    Teeth
    14/17
    Module
    7.0
    HP
    70
    Rated Input
    540rpm
    Input/Output Description
    Hexagon Spline ( 1 3/8 Z6 )
    Cone base aequlate spline shaft, Optic axis 6.35 flat key
    Net Weight
    37.5kg

    Agricultural Machine Worm Transmission Gearbox Reducer

    Agricultural Machine Worm Transmission Gearbox Reducer

    Hangzhou Ocean Industry Co., Ltd. is a specialized supplier of a full range of chains, sprockets, gears, gear racks, v belt pulley, timing pulley, V-belts, couplings, machined parts and so on.

    Due to our sincerity in offering best service to our clients, understanding of your needs and overriding sense of responsibility toward filling ordering requirements, we have obtained the trust of buyers worldwide. Having accumulated precious experience in cooperating with foreign customers, our products are selling well in the American, European, South American and Asian markets. Our products are manufactured by modern computerized machinery and equipment. Meanwhile, our products are manufactured according to high quality standards, and complying with the international advanced standard criteria.

    With many years' experience in this line, we will be trusted by our advantages in competitive price, one-time delivery, prompt response, on-hand engineering support and good after-sales services.

    Additionally, all our production procedures are in compliance with ISO9001 standards. We also can design and make non-standard products to meet customers' special requirements. Quality and credit are the bases that make a corporation alive. We will provide best services and high quality products with all sincerity. If you need any information or samples, please contact us and you will have our soon reply.
    FAQ:
    Q1: Are you trading company or manufacturer ?
    A: We are factory.

    Q2: How long is your delivery time and shipment?
    1.Sample Lead-times: generally 10 workdays.
    2.Production Lead-times: 20-40 workdays after getting your deposit.

    Q3. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery.

    Q4: What is your advantages?
    1. Manufacturer,the most competitive price and good quality.
    2. Perfect technical engineers give you the best support.
    3. OEM is available.
    4. Rich stock and quick delivery.

    Q5. If you can’t find the product on our website,what do you next?
    Please send us inquiry with product pictures and drawings by email or other ways and we'll check.

    Agricultural Machine Worm Transmission Gearbox Reducer
